Physics

Estella’s physics runs in the C++/WebAssembly core, powered by Box2D v3. You attach a RigidBody and a collider to an entity, then move it with forces, query the world with raycasts, react to collisions, and connect bodies with joints. Physics steps at a fixed timestep, decoupled from the frame rate, for stable simulation.

Setup

Physics is an optional side-module. In the editor and web runtime it loads automatically when a scene uses physics components. In a custom app, add the plugin yourself (gravity defaults to { x: 0, y: -9.81 }):

import { PhysicsPlugin } from 'esengine/physics';

app.addPlugin(new PhysicsPlugin('physics.js', { gravity: { x: 0, y: -9.81 } }));

Note

Physics types are imported from esengine/physics (the API, plugin, events), while the components (RigidBody, colliders, CharacterController) come from the main esengine barrel.

Units

Box2D simulates in meters; the rest of the engine works in world pixels. The conversion factor is the live pixels-per-unit (PPU) — Canvas.pixelsPerUnit, 100 pixels per meter by default. Every part of the physics API sits on a fixed side of that boundary:

Surface	Units
Collider component dimensions — halfExtents, radius, offset, …	Meters.
Solver-facing methods — applyForce / applyImpulse, setLinearVelocity / getLinearVelocity, setGravity, …	Meters (m/s, m/s²).
Spatial queries — raycast, shapeCast*, overlapCircle / overlapAABB, moveCharacter	World pixels, scaled by the live PPU.
CharacterController.velocity, MotorJoint.linearVelocity	World pixels per second.

physics.getPixelsPerUnit() returns the live PPU (pushed from the Canvas each frame), so conversions never hard-code 100:

const ppu = physics.getPixelsPerUnit();               // world pixels per meter
const speedPx = physics.getLinearVelocity(e).x * ppu; // m/s → px/s
physics.applyImpulse(e, { x: 0, y: jumpPx / ppu });   // px/s → m/s

Mixing the two spaces — passing pixels to applyForce, or meters to raycast — is the most common physics bug. When in doubt: components and solver = meters; queries and the character controller = pixels.

Bodies & colliders

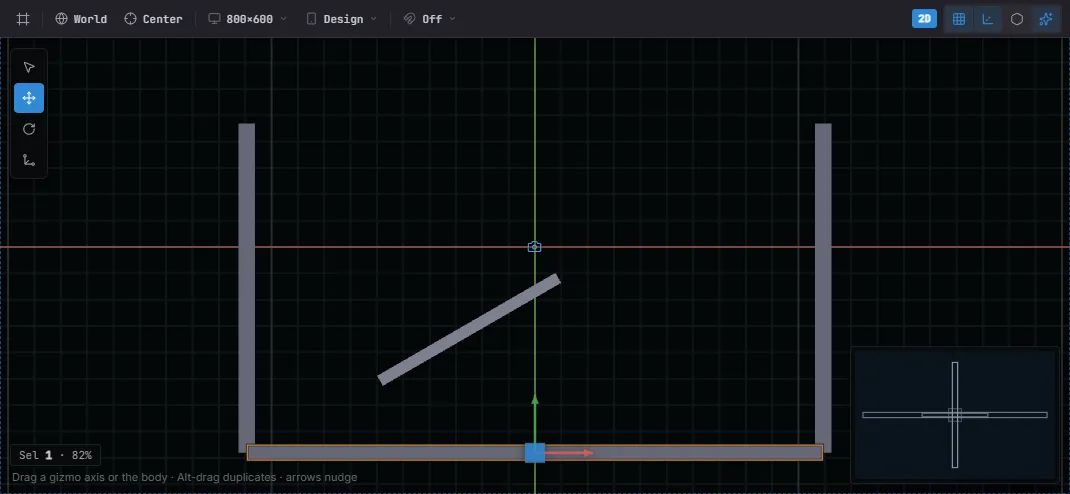

Collider gizmos in the viewport: the selected Ground’s box outline (amber) plus the walls and ramp. Toggle them with the viewport’s Physics show-flag.

Attach a RigidBody plus one collider shape. Collider dimensions are in meters, not pixels — divide pixel sizes by your pixels-per-unit (see Units). Spawn from a system that takes Commands():

import {
  defineSystem, Commands, Transform,
  RigidBody, BodyType, CircleCollider,
} from 'esengine';

const PPU = 100;   // = Canvas.pixelsPerUnit; read the live value via physics.getPixelsPerUnit()

const spawnBall = defineSystem([Commands()], (cmds) => {
  cmds.spawn()
    .insert(Transform, { position: { x: 0, y: 250, z: 0 } })
    .insert(RigidBody, { bodyType: BodyType.Dynamic, gravityScale: 1 })
    .insert(CircleCollider, { radius: 24 / PPU, density: 1, friction: 0.3, restitution: 0.4 });
});

RigidBody

Property	Type	Default	Description
bodyType	BodyType	Dynamic	Static (immovable), Kinematic (moved by code), Dynamic (simulated).
gravityScale	number	1	Multiplier on world gravity (0 = float).
linearDamping	number	0	Linear velocity drag.
angularDamping	number	0	Angular velocity drag.
fixedRotation	boolean	false	Lock rotation (typical for characters).
bullet	boolean	false	Continuous collision for fast, thin bodies (anti-tunneling).
enabled	boolean	true	Disable to remove from the simulation.

Colliders

All colliders share these fields; each adds its own shape parameters. Dimensions are in meters.

Shared property	Type	Default	Description
offset	Vec2	{0, 0}	Local offset from the entity origin.
density	number	1	Mass per area (drives the body’s mass).
friction	number	0.3	Surface friction, 0..1+.
restitution	number	0	Bounciness, 0..1.
isSensor	boolean	false	Detect overlaps without a physical response (triggers).
categoryBits	number	0x0001	Which collision layer this collider is on.
maskBits	number	0xFFFF	Which layers it collides with.
enabled	boolean	true	Disable the shape.

Component	Shape parameters
BoxCollider	halfExtents ({0.5, 0.5}), radius (rounded corner, 0.05).
CircleCollider	radius (0.5).
CapsuleCollider	radius, halfHeight.
SegmentCollider	point1, point2 (a one-sided edge).
PolygonCollider	vertices: Vec2[], radius (rounded).
ChainCollider	points: Vec2[], isLoop (static edge chain; no density/isSensor).

Collision filtering

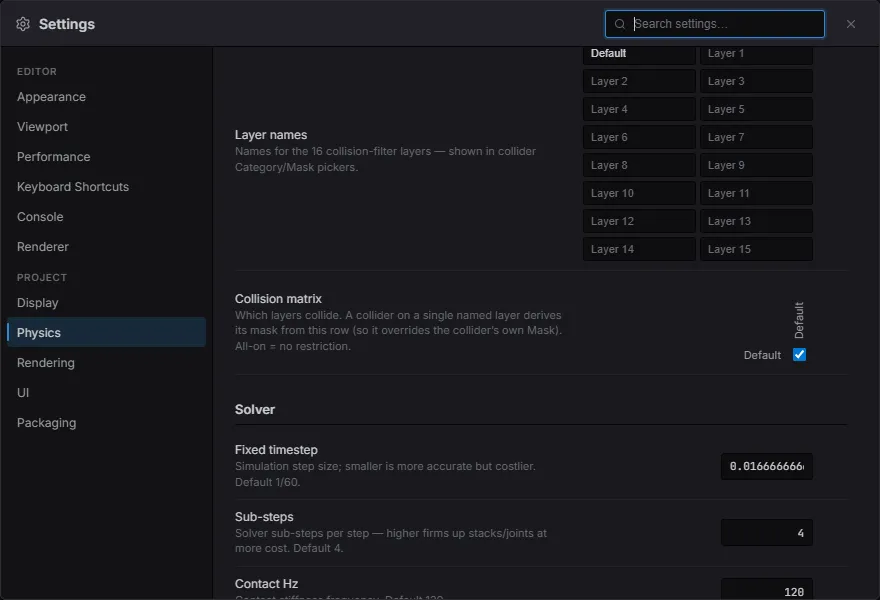

Project Settings → Physics: name your 16 collision layers, then toggle which pairs collide in the matrix (alongside the solver tuning below).

categoryBits (what layer a body is on) and maskBits (what it collides with) are 16-bit filters. Two bodies collide only if each one’s category is in the other’s mask:

const LAYER_PLAYER = 0x0001;
const LAYER_ENEMY  = 0x0002;
const LAYER_GROUND = 0x0008;

.insert(CircleCollider, {
  radius: 16 / PPU,
  categoryBits: LAYER_PLAYER,
  maskBits: LAYER_ENEMY | LAYER_GROUND,   // ignores other players
});

The layer filter is the single control for what interacts — collisions, hit events, and sensor detection all use it. Colliders don’t need to opt in to be seen by a sensor: any collider whose layers pass the sensor’s filter is detected. To keep something out of a sensor, exclude it by layer (not a per-collider flag); to keep sensor work cheap in a busy world, put sensors and their targets on dedicated layers so the mask narrows what each sensor considers.

Moving bodies — forces & velocity

Read the Physics resource — a PhysicsAPI instance — to drive bodies. These methods talk to the solver directly, so they are all in meters (m/s, m/s² — see Units). Every method takes the world entity:

import { defineSystem, Query, Res, RigidBody } from 'esengine';
import { Physics } from 'esengine/physics';

const move = defineSystem([Query(RigidBody), Res(Physics)], (q, physics) => {
  for (const [entity] of q) {
    physics.applyForce(entity, { x: 0, y: 20 });        // continuous force
    physics.applyImpulse(entity, { x: 0, y: 5 });       // instant kick (jump)
    physics.setLinearVelocity(entity, { x: 3, y: 0 });
  }
});

Method	Description
applyForce(e, v) / applyImpulse(e, v)	Continuous force / instantaneous impulse.
applyTorque(e, t) / applyAngularImpulse(e, i)	Rotational force / impulse.
setLinearVelocity(e, v) / getLinearVelocity(e)	Set / read linear velocity.
setAngularVelocity(e, w) / getAngularVelocity(e)	Set / read angular velocity.
setGravity(v) / getGravity()	World gravity.
getMass(e) / getInertia(e) / getCenterOfMass(e) / getMassData(e)	Mass properties.
setAwake(e, awake) / isAwake(e)	Sleeping-body control.

getMassData(e) bundles the mass properties into one MassData:

MassData field	Type	Description
mass	number	Body mass (from collider density × area).
inertia	number	Rotational inertia about the center of mass.
centerOfMass	Vec2	Center of mass in the body’s local frame, in pixels (× PPU).

Spatial queries

Queries take pixel-space arguments and auto-scale by the live PPU. Each accepts an optional maskBits to filter by layer:

// Raycast — every hit along the ray, nearest first.
const hits = physics.raycast(origin, direction, 200);
for (const hit of hits) {
  // hit.entity, hit.point, hit.normal
}

const nearby = physics.overlapCircle(center, 64);   // Entity[]
const inBox  = physics.overlapAABB(min, max);       // Entity[]
const swept  = physics.shapeCastCircle(/* … */);    // sweep a shape

Method	Returns	Description
raycast(origin, dir, dist, maskBits?)	hit list	All hits along a ray, nearest first.
overlapCircle(center, radius, maskBits?)	Entity[]	Colliders overlapping a circle.
overlapAABB(min, max, maskBits?)	Entity[]	Colliders overlapping a box.
shapeCastCircle / shapeCastBox / shapeCastCapsule	hit	Sweep a shape and get what it would hit.

Casts return RaycastHits (ShapeCastHit is the same shape):

RaycastHit field	Type	Description
entity	Entity	The entity owning the collider that was hit.
point	Vec2	Hit point, world pixels.
normal	Vec2	Surface normal at the hit point (unit vector).
fraction	number	Fraction of the cast distance at the hit, 0..1 — results sort by it, nearest first.

Collision & sensor events

The PhysicsEvents resource carries this frame’s contacts. Set isSensor: true on a collider to get enter/exit events without a physical response (trigger zones):

import { defineSystem, Res } from 'esengine';
import { PhysicsEvents } from 'esengine/physics';

const onHit = defineSystem([Res(PhysicsEvents)], (events) => {
  for (const c of events.collisionEnters) { /* c.entityA, c.entityB, c.normalX/Y, c.contactX/Y */ }
  for (const x of events.collisionExits)  { /* x.entityA, x.entityB */ }
  for (const h of events.collisionHits)   { /* h.approachSpeed, h.pointX/Y, h.normalX/Y */ }
  for (const s of events.sensorEnters)    { /* s.sensorEntity, s.visitorEntity */ }
  for (const s of events.sensorExits)     { /* … */ }
});

Event list	Fired when
collisionEnters / collisionExits	Two solid colliders begin / stop touching.
collisionHits	A high-speed impact (carries approachSpeed).
sensorEnters / sensorExits	A body enters / leaves a sensor collider.

Joints

What each joint constrains: a Revolute hinge (rotate about a pin), a Distance spring/rod, a Prismatic slider (one axis), a rigid Weld, a Wheel (suspension + free spin), and a Motor (driven toward a target velocity).

Connect two bodies. Add a joint component (RevoluteJoint, DistanceJoint, PrismaticJoint, WeldJoint, WheelJoint, MotorJoint), or create one imperatively and drive its motor / limits:

// A hinge with a motor (a powered wheel or swinging door).
physics.createRevoluteJoint(bodyA, bodyB, anchorA, anchorB, {
  enableMotor: true, motorSpeed: 6, maxMotorTorque: 200,
  enableLimit: true, lowerAngle: -1.0, upperAngle: 1.0,
});

physics.setRevoluteMotorSpeed(bodyA, 10);
physics.setRevoluteLimits(bodyA, -0.5, 0.5);
const angle = physics.getRevoluteAngle(bodyA);
physics.destroyJoint(bodyA);

Each joint type has a parallel set of control methods:

Joint	Control methods
Revolute (hinge)	setRevoluteMotorSpeed, setRevoluteMaxMotorTorque, enableRevoluteMotor, enableRevoluteLimit, setRevoluteLimits, getRevoluteAngle, getRevoluteMotorTorque.
Distance (spring)	setDistanceJointLength, getDistanceJoint*Length, enableDistanceJointSpring/Limit/Motor, setDistanceJointLimits, setDistanceJointMotorSpeed, …
Prismatic (slider)	getPrismaticJointTranslation/Speed, enablePrismaticJointSpring/Limit/Motor, setPrismaticJointLimits/MotorSpeed/MaxMotorForce, …
Wheel	enableWheelJointSpring/Limit/Motor, setWheelJointLimits/MotorSpeed/MaxMotorTorque, getWheelJointMotorTorque.
Motor	setMotorJointLinearVelocity, setMotorJointAngularVelocity, setMotorJointMaxVelocityForce, setMotorJointMaxVelocityTorque.

Destroy any joint with destroyJoint(bodyA).

The motor joint drives body B toward a target velocity (or spring-held offset) relative to body A — a conveyor, a driven platform, or anything that should move under its own power:

// A conveyor: drive the crate toward +x at a fixed speed.
world.insert(crate, MotorJoint, {
  connectedEntity: anchor,
  linearVelocity: { x: 200, y: 0 }, // world px/s
  maxVelocityForce: 500,            // newtons available to reach it
});
physics.setMotorJointLinearVelocity(crate, { x: -200, y: 0 }); // reverse at runtime

In the editor

Scene-authored joints draw a gizmo in the viewport: a dashed link between the two anchors, with the anchor dots draggable — dragging writes anchorA / anchorB in the owning body’s local frame. Prismatic and wheel joints also show their slide axis; drag its tip to re-aim the axis. Motor joints show an arrow along their target linear velocity. The whole family (colliders, one-way arrows, joints) is toggled by the Physics entry in the viewport’s Show Flags.

One-way platforms

Add OneWayPlatform to a static (or kinematic) collider to make it one-sided — a body lands on it from one direction and passes through from the others. This is the classic jump-up-through-a-ledge behaviour, built on Box2D’s pre-solve callback (zero cost when no one-way platforms exist):

import { OneWayPlatform } from 'esengine/physics';

const platform = world.spawn('ledge');
world.insert(platform, Transform, { position: { x: 0, y: 0 } });
world.insert(platform, RigidBody, { bodyType: BodyType.Static });
world.insert(platform, BoxCollider, { halfExtents: { x: 2, y: 0.2 } });
world.insert(platform, OneWayPlatform, { normal: { x: 0, y: 1 } }); // solid top: land from above, pass from below

normal is the solid-side direction in world space; { x: 0, y: 1 } (the default) means “solid top”. Set enabled: false to turn the platform back into a normal solid. In the editor, a one-way platform’s collider gizmo grows an arrow along the solid-side normal, so which way it carries is visible at a glance.

Mouse / drag joint

To let the player drag a body with the pointer, use the drag-joint API. Box2D v3 has no dedicated mouse joint, so this is its canonical replacement — a spring that pulls the body toward a moving target. Create it on pointer-down (grabbing the body at the cursor), move the target on pointer-move, and destroy it on pointer-up:

// pointer down — grab the body at the world-space cursor:
physics.createMouseJoint(entity, cursorWorld);         // maxForce auto-sizes to the body
// pointer move:
physics.setMouseTarget(cursorWorld);
// pointer up:
physics.destroyMouseJoint();

Only one drag is live at a time. Pass { hertz, dampingRatio, maxForce } to tune the spring’s stiffness and grip.

Character controller

For a player that walks along surfaces instead of tumbling like a dynamic body, add a CharacterController. Set its velocity from gameplay each step; the controller advances it one step with Box2D’s native kinematic mover (b2World_CollideMover

• b2SolvePlanes) — it collides the body into contact planes and solves a depenetrating slide, so a character resting on the ground slides and jumps cleanly instead of sticking to it. It writes the resolved pose back and reports what it touched:

import { defineSystem, Query, Mut, CharacterController } from 'esengine';

const drive = defineSystem([Query(Mut(CharacterController))], (q) => {
  for (const [entity, cc] of q) {
    cc.velocity = { x: input.moveX * 240, y: cc.velocity.y - 900 * dt };  // gravity
    if (cc.isOnFloor && jumpPressed) cc.velocity.y = 480;
  }
});

Give the entity a collider (the mover shape is derived from it — a box becomes a capsule inscribed along its longer axis) and, if other bodies should collide with the character, a Kinematic RigidBody. The mover excludes the character’s own body automatically, so its maskBits need not avoid its own collision layer. Drive velocity from a fixed-timestep system so motion is frame-rate independent; read the isOnFloor edge for jumps (delivered correctly to FixedUpdate — see Input).

Property	Type	Default	Description
velocity	Vec2	{0, 0}	Desired velocity in world pixels/second (set each step).
up	Vec2	{0, 1}	Up direction for floor/ceiling classification.
floorMaxAngle	number	0.785	Max walkable slope from up, radians (45°).
skinWidth	number	1	Gap kept off surfaces (pixels) so the body doesn’t stick or jitter.
maxSlides	number	4	Max depenetration slide iterations per move (clamped to ≥1).
snapLength	number	0	Down-probe length (pixels) that glues the body to descending stairs/slopes; 0 disables it. Skipped while rising, so a jump still leaves the ground.
slideOnCeiling	boolean	true	When false, a ceiling hit cancels the upward velocity instead of sliding along it.
maskBits	number	0xFFFF	Layers that block the character.
isOnFloor / isOnWall / isOnCeiling	boolean	—	Output: what was touched this move.
floorNormal	Vec2	—	Output: normal of the last floor touched.
realVelocity	Vec2	—	Output: actual displacement / dt after collisions.

Note

skinWidth, maxSlides, snapLength, and slideOnCeiling are honored by the live native mover and by the standalone moveAndSlide resolver (esengine/physics), so they behave the same whichever path you use. The defaults suit a standard character; the common tweak is a small snapLength (a few pixels) to keep the character glued to descending stairs and slopes.

Debug draw

The physics plugin installs a PhysicsDebugDraw resource — an in-game overlay that strokes collider outlines, velocity vectors, and contact points through the Draw API. It ships disabled; flip enabled from any system to see exactly what the solver sees:

import { defineSystem, Res, Input } from 'esengine';
import { PhysicsDebugDraw } from 'esengine/physics';

const toggleDebug = defineSystem([Res(Input), Res(PhysicsDebugDraw)], (input, dbg) => {
  if (input.isKeyPressed('F1')) dbg.enabled = !dbg.enabled;
});

PhysicsDebugDrawConfig field	Default	Draws
enabled	false	Master switch for the whole overlay.
showColliders	true	Collider outlines, color-coded by body: blue = static, green = dynamic, cyan = kinematic; sensors are yellow.
showVelocity	false	A red arrow per dynamic body along its linear velocity.
showContacts	false	A red dot at each contact that began this frame.

The overlay draws in world pixels at each body’s live transform (scaled by the live PPU), so what you see is exactly where the queries agree the collider is. setupPhysicsDebugDraw(app, Physics, PhysicsEvents) is the wiring PhysicsPlugin runs for you — it inserts the resource and registers the draw callback; call it (or the underlying per-frame drawPhysicsDebug(app, Physics, PhysicsEvents)) only from a custom host that bypasses the plugin.

Note

This is the runtime overlay. The editor viewport has its own collider/joint gizmos under the Physics Show Flag (see Joints — in the editor); the two are independent.

Best practices

• Fixed timestep: apply continuous forces and read PhysicsEvents every frame, since physics substeps independently of the frame delta.
• bullet: true on fast, thin bodies (bullets, thin platforms) to avoid tunneling.
• fixedRotation: true for characters so they don’t topple.
• Colliders and the solver in meters, queries and the character controller in pixels — mixing the two is the most common bug; convert with physics.getPixelsPerUnit() (see Units).
• Sensors for triggers: isSensor: true gives enter/exit events with no physical push.
• Filter with layers (categoryBits / maskBits) instead of checking entity types in event handlers.

See also

• Scenes — physics components serialize with the scene.
• Math Helpers — vector math for velocities and directions.
