Building & Exporting

One Estella project ships to six targets — Web, Desktop, WeChat MiniGame, a single-file Playable Ad, and native Android / iOS apps — all from the editor. The export uses the same runtime you played in the editor, so what you shipped is what you tested (play == ship).

Exporting from the editor

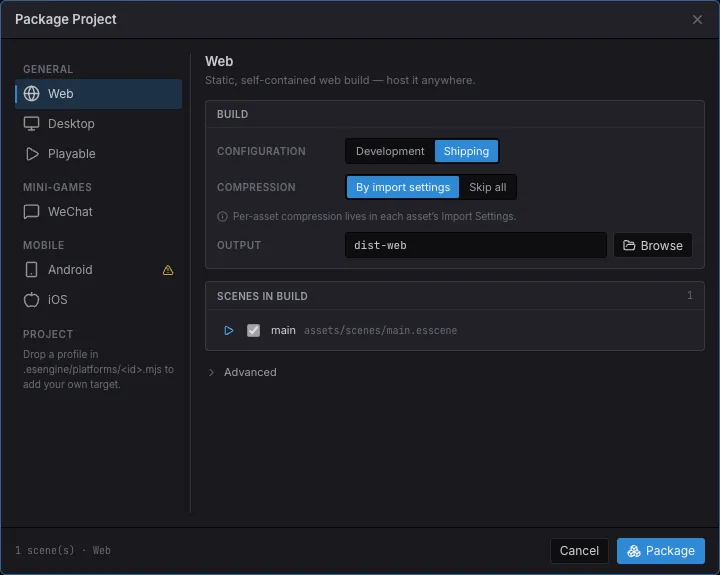

The Package Project dialog — the target list, build configuration, output folder, and scenes in build

The Package Project dialog: pick a target from the categorized list, a configuration, the output folder, and the cook options — then Package.

Open File → Build… to bring up the Package Project dialog.
Pick a target from the list — grouped as General (Web / Desktop / Playable), Mini-games (WeChat and any the project added), and Mobile (Android / iOS).
Choose a build config — Development or Shipping (Shipping minifies) — an output folder, source maps, and the asset cook options.
Check the Scenes in build list — untick scenes you don’t want to ship, and pin a different startup scene if needed (see below).
Click Package and watch the live build log. When it finishes, the output folder opens (there’s a checkbox to turn that off), and Web / Playable builds offer Preview over http.

Your choices are saved into project.esproject, so the dialog remembers them next time.

Scenes in build

Every scene in the project’s scenes folder ships with the export and becomes a SceneManager.switchTo target — see Scenes for how a game script switches between them. The dialog’s Scenes in build list controls the set:

The startup scene is pinned first with a play badge. It always ships — move the pin to another scene by clicking its play button, or right-click any scene in the Content Browser and choose Set as Startup Scene.
Untick a scene to leave it out of the build (saved as packaging.excludeScenes in project.esproject). Excluded scenes stay fully editable and playable in the editor; assets referenced only by excluded scenes are not cooked into the build.
Playable ships the startup scene only — it’s a size-capped single file.

Preview an export

After a Web or Playable build, click Preview over http — the editor serves the output folder on a local loopback server (http://127.0.0.1:<port>/) and opens it in your browser.

The targets

Target	What it produces	Output	Next step
Web	A static, self-contained web build.	`dist-web/`	Preview over http, or upload the folder to any static host.
Desktop	An Electron app source tree.	`dist-desktop/`	`cd dist-desktop && npm install && npm start` — or `npm run dist` for a native `.dmg` / `.exe` / AppImage installer.
WeChat	A WeChat MiniGame package.	`dist-wechat/`	Open the folder in WeChat DevTools and set your AppID. See WeChat MiniGame.
Playable	One self-contained `index.html` with everything inlined — no external requests, as ad networks require.	`dist-playable/`	Preview over http (its real surface is an ad-network iframe). Pick the ad network so the CTA and the size check match where it ships.
Android	Content for a native arm64 app (Vulkan) — a real APK, not a WebView.	`dist-android/`	`node build-tools/cli.js native --package --content dist-android` wraps it in a signed APK. See Android & iOS.
iOS	Content for a native arm64 app (Metal), plus the Xcode project when the engine is built for iOS here.	`dist-ios/`	Open the generated Xcode project, pick a signing team, Run. See Android & iOS.

The mobile targets export app content, not a runnable payload: the engine, the SDK and the game runtime live in the app binary. That is also why they need a toolchain the other four do not — see prerequisites below.

Playable ad networks

Every network takes the same single HTML file but disagrees on three things: how big it may be, what must sit in <head>, and which function sends the player to the store. Pick the network in the Package Project dialog — it sits with the Playable target’s own settings — and the export handles all three. Shipping the same game to several networks is a normal day, so it is a per-build choice rather than a project property; each network also gets its own output folder (dist-playable/<network>), so packaging for one never overwrites the last.

Your game code never names a network. Call the CTA once:

import { playableCta } from 'esengine';

// on your end-card button, after the win — wherever the call to action is
playableCta();

The export installs the bridge playableCta() dispatches through. With no network selected it is a no-op, so the same scene still runs in the editor and on the web.

Network	Limit	Click-through	Notes
Generic	2MB	—	No network API. The cap is the strictest we know of, since an unnamed target could be any of them.
Meta (Facebook / Instagram)	2MB for `index.html`	`FbPlayableAd.onCTAClick()`	Meta’s 5MB figure is the total for a ZIP bundle; a single-file playable is capped by the `index.html` rule. Forbids any HTTP request.
Google Ads (App campaigns)	5MB	`ExitApi.exit()`	Its exit API is a Google-hosted script, which the docs require as a literal `<script>` in `<head>` — the export writes it for you. Google uploads a ZIP, so compress the `index.html` before uploading.
MRAID network (generic)	5MB	`mraid.open()`	For any MRAID host. `mraid` is injected by the webview, so nothing goes in `<head>`.
Unity Ads	5MB	`mraid.open()`	Expects the playable to wait for MRAID’s `viewableChange` before starting.
AppLovin	5MB	`mraid.open()`	Requires every resource embedded — which a single-file playable already is.

Limits move, so each one is reported against the network it came from: an oversized export names the cap it used and where that number is published, rather than a bare number to trust.

A network we don’t ship

Define it yourself — the built-in networks are written against this exact contract, so nothing is out of reach. Package Project → New platform scaffolds one (pick Playable ad network), or write .esengine/platforms/<id>.mjs by hand:

export default {
  id: 'acme-ads',
  kind: 'playable',
  label: 'Acme Ads',

  // The size this network accepts, and where that number is published — the export
  // quotes the note in its warning.
  maxBytes: 5 * 1024 * 1024,
  limitNote: 'Acme docs, Creative specs § playable',

  // Optional: markup for <head> (an orientation meta tag, the network's SDK script).
  emitHead: (ctx) => `<meta name="ad.orientation" content="${ctx.orientation}">`,

  // Installs the bridge playableCta() dispatches through. Runs before the game.
  emitBridge: () => `window.__ESTELLA_PLAYABLE__={cta:function(){AcmeSDK.openStore();}};`,
};

It then appears in the dialog’s Ad network dropdown beside the built-in ones, and packages through the same pipeline.

Runtime prerequisites

Web, Desktop and Playable all reuse the engine runtime that ships with the editor, so they export with no setup — a playable inlines that same web runtime (glue as a blob module, wasm as base64) rather than needing a build of its own. WeChat is the exception among the web-based targets: its WebAssembly loader differs, so its runtime is built once:

# only before the first WeChat export
node build-tools/cli.js build -t wechat

The Package Project dialog reminds you when a target’s runtime is missing, and a WeChat export fails fast — naming the exact build command — rather than producing a package that breaks at runtime. WeChat also needs a matching side module for each engine feature the game uses (physics-wechat, spine-wechat, basis-wechat for compressed textures) — see WeChat MiniGame.

The dialog distinguishes two kinds of missing prerequisite, because they don’t block the same amount:

A missing engine runtime (Web / Playable / WeChat) means the package cannot be produced at all.
A missing native toolchain (Android / iOS) does not. The export still writes the app’s content; only the final assembly into an installable app needs the toolchain, and that step can run on another machine — an iOS build always does when the editor is on Windows.

Content a target cannot render

A target does not necessarily compile every subsystem the editor can author. When one doesn’t, the export names the gap and the scenes that hit it rather than writing a package that is quietly missing half a scene — the warning lists the subsystem (tilemaps, particles, post-processing, physics, Spine, video, text) and the files that authored it.

No target currently has a gap: the native app compiles the whole engine source list, and the three subsystems that are separate side modules on the web are compiled into its binary instead. The check stays because that can change.

Side modules

Optional engine features ship as separate WebAssembly side modules — an emscripten <file>.js glue plus <file>.wasm per module — loaded on demand so the base engine stays small:

Module	Artifacts	Loaded when
Physics (Box2D)	`physics.js` / `physics.wasm`	The project declares physics or a scene uses physics components.
Spine	`spine38` / `spine41` / `spine42` `.js`/`.wasm`	A scene uses a Spine skeleton of that format version.
Basis transcoder	`basis.js` / `basis.wasm`	The build shipped KTX2-compressed textures.
Video decoder	`videodec.js` / `videodec.wasm`	The wasm video path decodes a clip.

Web / Desktop — the artifacts sit as loose files next to esengine.wasm; the runtime fetches them from wasmBaseUrl (the directory the engine itself was loaded from) via a fetch side-module host.
Playable — nothing external is allowed, so the exporter inlines the modules as base64 into the single HTML file; the boot code (initPlayableRuntime) is handed an embedded side-module host instead of a URL.
WeChat — side modules are packaged as WeChat-precompiled module factories (that’s why each feature needs its *-wechat runtime build, above).

The editor’s own play mode boots through the same shipping runtime (initPlayRealmRuntime), fetching side modules over the editor origin — so play == ship covers these modules too. See App Setup & Lifecycle for the runtime API.

Build config & source maps

Development — an unminified build; pair it with source maps for debuggable output.
Shipping — minified for size and speed. This is what you release.
Source maps map the running bundle back to your TypeScript. They’re available for Web and Desktop; leave them off for a release build.

Asset cook options

What the cook does to an individual asset is that asset’s own business — per-asset Import Settings in the Inspector, with a tab per platform, so a texture can be compressed harder for a phone than for the web. The build only picks whether to honor those settings at all:

Compression → By import settings — each texture and audio clip compresses per its Import Settings (PNG → KTX2 Basis Universal, Max Size, WAV → MP3), and <name>.atlas/ folders pack into atlas pages so many small sprites ship as one texture and batch in one draw call.
Compression → Skip all — ship everything raw, for fast iteration.

KTX2 textures are transcoded by the runtime to the best format each device supports (ASTC → ETC2 → S3TC, falling back to RGBA8), with their mip chains — smaller downloads and less VRAM.

Content addressing is on by default for Web/Desktop (each file named by a hash of its bytes — immutable URLs, automatic dedupe). Advanced holds the CDN root for hot update, source maps, and whether to open the output folder when the build finishes.

Packaging settings

Per-target metadata lives in Project Settings → Packaging and is saved with the project:

Application ID — the reverse-DNS id the installed app is known by: the Android manifest package, the iOS bundle id, the desktop installer id. Empty derives one from the project name; a published app should set its own, because a store keeps it forever.
WeChat — AppID.
Desktop — application id override and product name (used to name the installer).
Android — version code, the integer Google Play orders builds by.

Screen orientation

Orientation is one project-wide setting, not per-target: Project Settings → Display → Orientation (portrait or landscape), right beside the design resolution. Every target honors it — the WeChat game.json deviceOrientation, the web build’s rotate-to-fit prompt (and a best-effort screen.orientation.lock), the desktop window’s aspect, and the native app’s app.config.json (the engine can letterbox but cannot rotate a phone). Left unset, it’s derived from the design resolution’s aspect (wider-or-square ⇒ landscape, taller ⇒ portrait), so a landscape design ships landscape everywhere with zero configuration.

A playable is the exception, deliberately: it never pins the page. Inside an ad SDK the container’s size is the SDK’s business, so a rotate-to-fit overlay can hide the game for good — the player turns the phone and nothing changes, because the media query was reading the container all along. Playables stay responsive (every network asks for that), and the orientation is only declared to the platform where one wants it, e.g. Google’s ad.orientation meta tag. Design for both aspects, or letterbox with a camera fit so the framing survives either one.

See The Editor for the settings UI.

The build CLI (advanced)

The editor packages your game. The build-tools/cli.js command builds the engine and SDK themselves — you only need it to produce the WeChat runtime above, or when working on the engine. Common commands:

node build-tools/cli.js build -t web        # build the engine (web target)
node build-tools/cli.js build -t wechat     # …the WeChat runtime
node build-tools/cli.js sdk                 # build the SDK only
node build-tools/cli.js watch               # rebuild on change (engine dev)
node build-tools/cli.js native --target ios # …the native mobile host
